History of clay sand casting

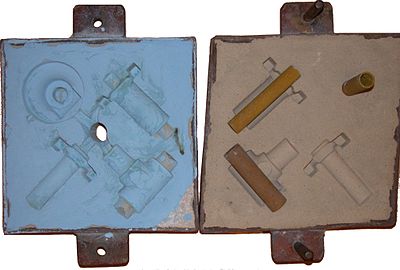

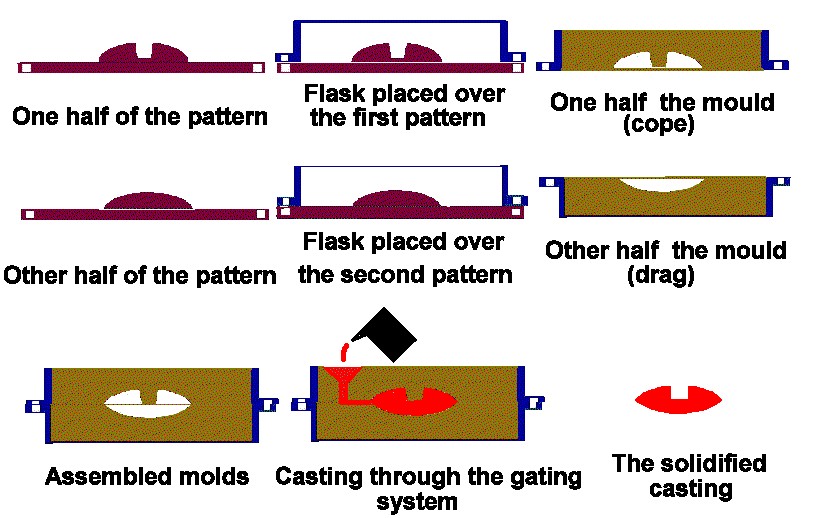

Molds made of sand are relatively cheap, and sufficiently refractory even for steel foundry use. In addition to the sand, a suitable bonding agent (usually clay) is mixed or occurs with the sand. The mixture is moistened, typically with water, but sometimes with other substances, to develop the strength and plasticity of the clay and to make the aggregate suitable for molding. The sand is typically contained in a system of frames or mold boxes known as a flask. The mold cavities and gate system are created by compacting the sand around models, or patterns, or carved directly into the sand.
History[edit]
Clay molds were used in ancient China since the Shang Dynasty (c. 1600 to 1046 BC). The famous Houmuwu ding (c. 1300 BC) was made using clay molding.
The Assyrian king Sennacherib (704–681 BC) cast massive bronzes of up to 30 tonnes, and claims to have been the first to have used clay molds rather than the "lost-wax" method:[21]
Sand casting molding method was recorded by Vannoccio Biringuccio in his book published around 1540.
In 1924, the Ford automobile company set a record by producing 1 million cars, in the process consuming one-third of the total casting production in the U.S. As the automobile industry grew the need for increased casting efficiency grew. The increasing demand for castings in the growing car and machine building industry during and after World War I and World War II, stimulated new inventions in mechanization and later automation of the sand casting process technology.
There was not one bottleneck to faster casting production but rather several. Improvements were made in molding speed, molding sand preparation, sand mixing, coremanufacturing processes, and the slow metal melting rate in cupola furnaces. In 1912, the sand slinger was invented by the American company Beardsley & Piper. In 1912, the first sand mixer with individually mounted revolving plows was marketed by the Simpson Company. In 1915, the first experiments started with bentonite clay instead of simple fire clay as the bonding additive to the molding sand. This increased tremendously the green and dry strength of the molds. In 1918, the first fully automated foundry for fabricating hand grenades for the U.S. Army went into production. In the 1930s the first high-frequency coreless electric furnace was installed in the U.S. In 1943, ductile iron was invented by adding magnesium to the widely used grey iron. In 1940, thermal sand reclamation was applied for molding and core sands. In 1952, the "D-process" was developed for making shell molds with fine, pre-coated sand. In 1953, the hotbox core sand process in which the cores are thermally cured was invented. In 1954, a new core binder—water glass(sodium silicate), hardened with CO2 from ambient air, came into use.
